New Delhi: The wi-fi charging know-how harnesses the facility of electrical fields, however boosts the voltage and operates at excessive frequencies to realize giant ranges of energy switch. The know-how wouldn’t solely save time for drivers and enhance productiveness in warehouses however would additionally actually pave the way in which for extra sustainable transit.
“There are lots of infrastructure questions that get requested whenever you say, ‘OK, we’re going to allow electrical autos. How does that society operate? If each car within the nation was electrical, you would wish lots of retailers to plug them in. We don’t have that type of energy accessible in our houses to have the ability to cost them very quick,” Afridi stated.
Brittle, costly and unwieldy
The thought of wirelessly powering autos in movement has been revisited by a wide range of teams, from California’s efforts to check roadway-powered electrical autos within the Nineteen Eighties as a part of its Companions for Superior Transit and Highways (PATH) program, to New Zealand researchers creating power-delivery applied sciences for conveyor methods within the Nineteen Nineties. Nevertheless, even with scientific advances in energy and electronics applied sciences, makes an attempt to commercialize this technique for roadway-powered autos have proved troublesome and expensive.
The preferred proposal for wi-fi car charging has centered on harnessing the facility of alternating magnetic fields, as a result of these fields will be generated utilizing available electrical currents. The delivered energy will increase if the fields are altering quickly, so latest work – enabled by improved know-how – has centered on tens of kilohertz frequencies in comparison with the few hundred hertz utilized by the PATH program.
The issue, nonetheless, stays that magnetic fields are unwieldy as a result of they kind full loops and their path have to be guided to maintain them out of sure areas. That’s as a result of high-strength alternating magnetic fields can hurt passengers within the automobile or warmth up rebars within the highway, and so must be impeded at these factors. The fabric that guides the fields – ferrite – is brittle, cumbersome, costly and loses lots of power when the magnetic fields are altering rapidly.
Whereas cumbersome and costly wi-fi chargers may very well be acceptable for stationary charging, deploying magnetic field-based methods on a big scale for recharging transferring autos is price prohibitive.
Afridi found a novel answer to those challenges by trying far past magnetic fields and kilohertz: to outer area.
“Wi-fi energy switch relies on the identical underlying physics used to ship messages by way of radio waves to spacecraft in deep area, issues like Voyager,” Afridi stated. “Besides now we’re sending rather more power throughout a lot shorter distances, to transferring autos.”
As an undergraduate on the California Institute of Expertise, Afridi had a passionate curiosity within the radio frequency electronics used for deep area communication. On the finish of his sophomore yr, he labored with NASA’s Jet Propulsion Laboratory on designing the 8- and 32-GHz transmitter of the SURFSAT 1 satellite tv for pc, which launched in 1995 as a precursor to the Saturn-bound Cassini satellite tv for pc two years later.
In graduate college on the Massachusetts Institute of Expertise, Afridi switched to learning energy electronics, which function at a lot decrease frequencies by a distinction of six orders of magnitude however deal with a lot larger energy ranges. In impact, Afridi gave up his gigahertz for kilohertz. However he at all times questioned about pushing energy electronics to their utmost frequencies.
“What actually drives me on the elementary degree,” he stated, “is taking these two very totally different communities – high-frequency electronics and high-power electronics – who’ve by no means talked to 1 one other, who don’t communicate the identical language, who basically clear up issues very in a different way, and merge them collectively to basically create a wholly new subject and likewise allow model new functions.”
From deep area to highways and warehouses
In 2014, Afridi started exploring the potential of reviving Nikola Tesla’s authentic parlor trick of manipulating electrical fields, however at a lot larger frequency and energy.

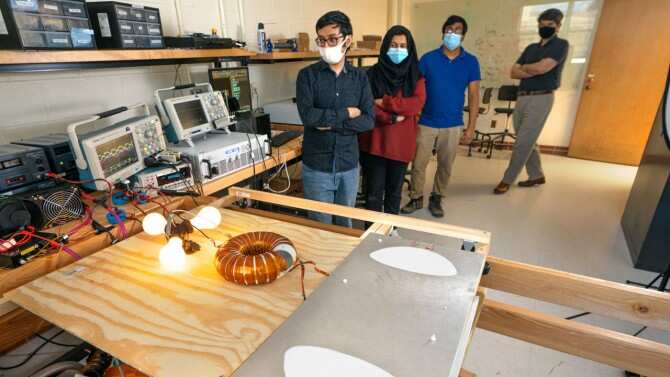

Within the system Afridi’s workforce has designed, two insulated metallic plates on the bottom, related to an influence line by way of an identical community and a high-frequency inverter, create oscillating electrical fields that entice and repel fees in a pair of matching metallic plates hooked up to the underside of a car. This drives a high-frequency present by way of a circuit on the car, which rectifies it. The rectified present then fees the battery.
One huge benefit of electrical fields is that they have a extra linear, directed nature in contrast with the looping arcs of magnetic fields. Therefore, they don’t require flux-guiding supplies, similar to ferrite, and might function at a lot larger frequencies. The primary problem is that electrical fields generated by available voltages are fairly weak. Afridi’s workforce compensates by boosting the voltage and working the system at very excessive frequencies to realize giant ranges of energy switch.
If it’s robust to create a wi-fi charging system, it’ll be simply as robust to implement it on a mass scale. Wi-fi charging might sound loopy to start with. But when we actually had that know-how, it might make lots of senseKhurram Afridi
“The newest magnetic subject methods developed for electrical car charging function at 85 kilohertz. The electrical subject system that we’re creating in our lab works at 13.56 megahertz. So it’s working virtually 200 occasions sooner, which partly compensates for the 5 orders of magnitude deficit it wants to beat,” Afridi stated. “It additionally seems that you may take care of a a lot larger voltage extra simply than a better present, which helps additional bridge the distinction in energy switch functionality.”
The workforce’s ferrite-free system guarantees to be smaller, lighter, inexpensive and simpler to embed within the roadway. Nevertheless, the system just isn’t straightforward to develop.
The wi-fi charging know-how harnesses the facility of electrical fields, however boosts the voltage and operates at excessive frequencies to realize giant ranges of energy switch.
So as to overcome quite a few technological hurdles, Afridi’s workforce – together with fellow Brandon Regensburger, M.S. ’19, Ph.D. ’20, postdoctoral researcher Sreyam Sinha, Ph.D. ’20, and doctoral scholar Sounak Maji – partnered with a number of collaborators at Cornell. Francisco Monticone, assistant professor {of electrical} and pc engineering, helped the workforce develop charging plates based mostly on engineered metamaterials to higher focus their electrical fields. Debdeep Jena and Huili Grace Xing, each professors in electrical and pc engineering and in supplies science and engineering, are additionally collaborating to develop broad bandgap supplies and gadgets that may deal with the excessive voltage and function at excessive frequencies.
The workforce’s most notable innovation is the energetic variable reactance (AVR) rectifier, which permits a car to get full energy when passing over the charging plates even when the pairs of plates – which might be laid out roughly each few meters on the highway – should not fully aligned. The AVR additionally helps ship energy to bigger autos which have elevated clearance between their undercarriages and the bottom.
If it’s robust to create a wi-fi charging system, it’ll be simply as robust to implement it on a mass scale.
One method, Afridi believes, could be to impress high-traffic roadways first, particularly to assist giant, long-haul vans. Another choice could be to deal with cities, putting in charging strips at cease indicators and site visitors lights, so drivers might recharge whereas they wait.
The know-how may be employed in manufacturing warehouses and success facilities so autonomous robots might work across the clock. Afridi is presently working with Toyota Materials Dealing with North America to develop in-motion charging for forklifts and material-handling cellular robots. He’s additionally a part of a Nationwide Science Basis-funded worldwide analysis middle that advances sustainable, electrified transportation.
“Wi-fi charging might sound loopy to start with. But when we actually had that know-how, it might make lots of sense,” Afridi stated.
